1. Introduction for beer brew system

Nano brewery produced by us is a set of technological equipment for the production of "live" and filtered beer. Brew master makes their beer attractive to consumers by unique brewing process and distinctive beer taste.  If desired, they can be placed directly in places of consumption of beer: Home,restaurants, pub, bars, hotels, tourist and shopping centers. Owner may be faced with polished brass, copper besides stainless steel choice for the tank surface.


2. Specification of beer brew pub system

Output per brew: 300L

Brew per week: 2-6

Output per week: 600~1800L

Electric supply: 3Phase/380(220,415...)V/60(50)HZ;  Single phase/220(110,240...)V/60(50)HZ

Heating source: Electric element/Steam

Area request: >30㎡

Brewmaster: 1


3. Configuration of beer brew system

Malt Milling Unit

Particle adjustable rolling crusher


Brewhouse Unit

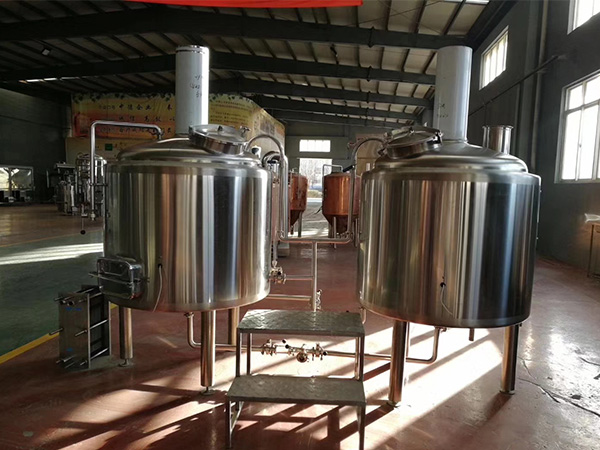

Mash/Lauter tun, Boiling Kettle/Whirlpool tun

Hot water tan and cold water tank for optional in special combinations

Infusion or decoction brewing methods are designed exactly

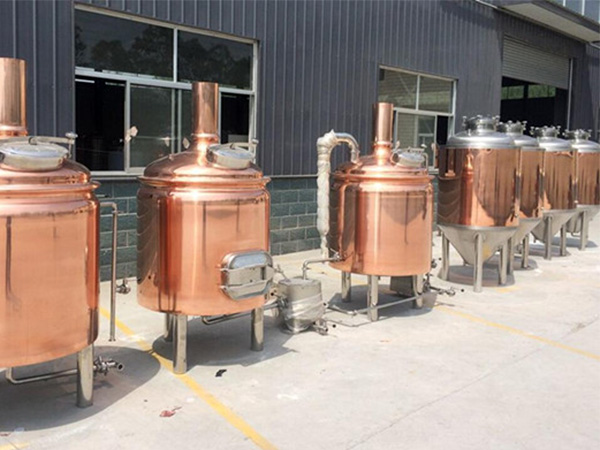

Stainless steel or copper cladding are popular

Two stages or single stage heat exchanger for wort cooling

Completely stainless steel integrated work platform

Sanitary and efficiency wort pump

All pipings and fittings


Fermentation Unit

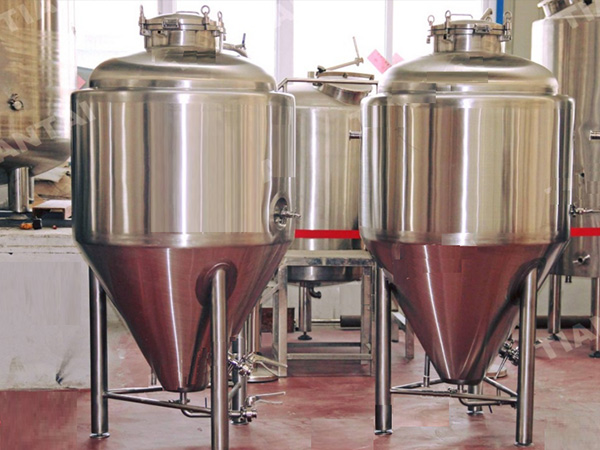

Standard stainless steel conical cylindrical fermentation tanks

Single size as brewhouse is common used in restaurant

Tanks quantity is exactly calculated by fermentation cycle for various beers

All manhole, valves, pressure gauges, fittings etc are included


Cooling Unit

Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing

Efficiency chillers or refrigerators with fryonto supply cooling energy

Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger

All pipes, fitting, insulation materials are included


Controlling Unit

Electrical controlling cabinet with temperature, on-off controlling for brewhouse

Electrical controlling cabinet with temperature, on-off controlling for cooling parts

Temperature controller, thermocouple, solenoid valves etc are included

PLC with touch screen panel for special request


CIP System

Portable CIP system for cleaning the tanks
