5000L Beer equipment

5000L Beer equipment


Make an inquiry

1. Introduction for beer brew system

A commercial brewery is focus on regional market. The capacity request is not so high than macro breweries. Their beers are always sold on shelf in bottle or canning. We are involved in providing different types of medium scale industrial breweries to clients worldwide.


The output is mainly 6kL,10kL, 15kL, 20kL,30kL per working day. The complete setup of these breweries is in compliance with modern brewery standards and specifications.These products enable systematic execution of milling, mashing, fermentation, filtration, filling and other related processes.


We subject each brewing system to stringent testing procedures before launching them in the market.


2. Specification of beer brew pub system

Output per brew: 5000L

Brew per week: 2-6

Output per week: 10000~30000L

Electric supply: 3Phase/380(220,415...)V/60(50)HZ;

Heating source: Steam

Area request: >400㎡

Brewmaster: 3

Install power: 40KW

Pump with ABB motor

Steam request:0.3Ton/Hr

Water consumption: 8m³ /Day


3. Configuration of beer brew system

Malt Milling Unit (3000kg/h)

Particle adjustable rolling crusher

Flex auger, grist case for option.

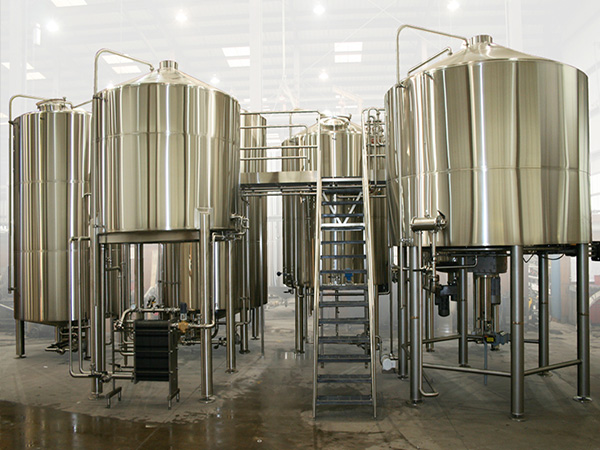

Brewhouse Unit (5000L)

Mash, Lauter tun, Boiling Kettle, Whirlpool tun

Hot water tank and cold water tank for optional in special combinations

Infusion or decoction brewing methods are designed exactly

Stainless steel or copper cladding are popular

Two stages or single stage heat exchanger for wort cooling

Completely stainless steel integrated work platform

Sanitary and efficiency wort pump

All pipings and fittings


Fermentation Unit  (5000L or 10000L for optional)

Standard stainless steel conical cylindrical fermentation tanks

Single size as brewhouse is common used in micro brewery;

Tanks quantity is exactly calculated by fermentation cycle for various beers

All manhole, valves, pressure gauges, fittings etc are included


Cooling Unit

Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing

Efficiency chillers or refrigerators with fryonto supply cooling energy

Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger

All pipes, fitting, insulation materials are included


Controlling Unit

Electrical controlling cabinet with temperature, on-off controlling for brewhouse

Electrical controlling cabinet with temperature, on-off controlling for cooling parts

Temperature controller, thermocouple, solenoid valves etc are included

PLC with touch screen panel for special request


CIP System

CIP system for cleaning the tanks
